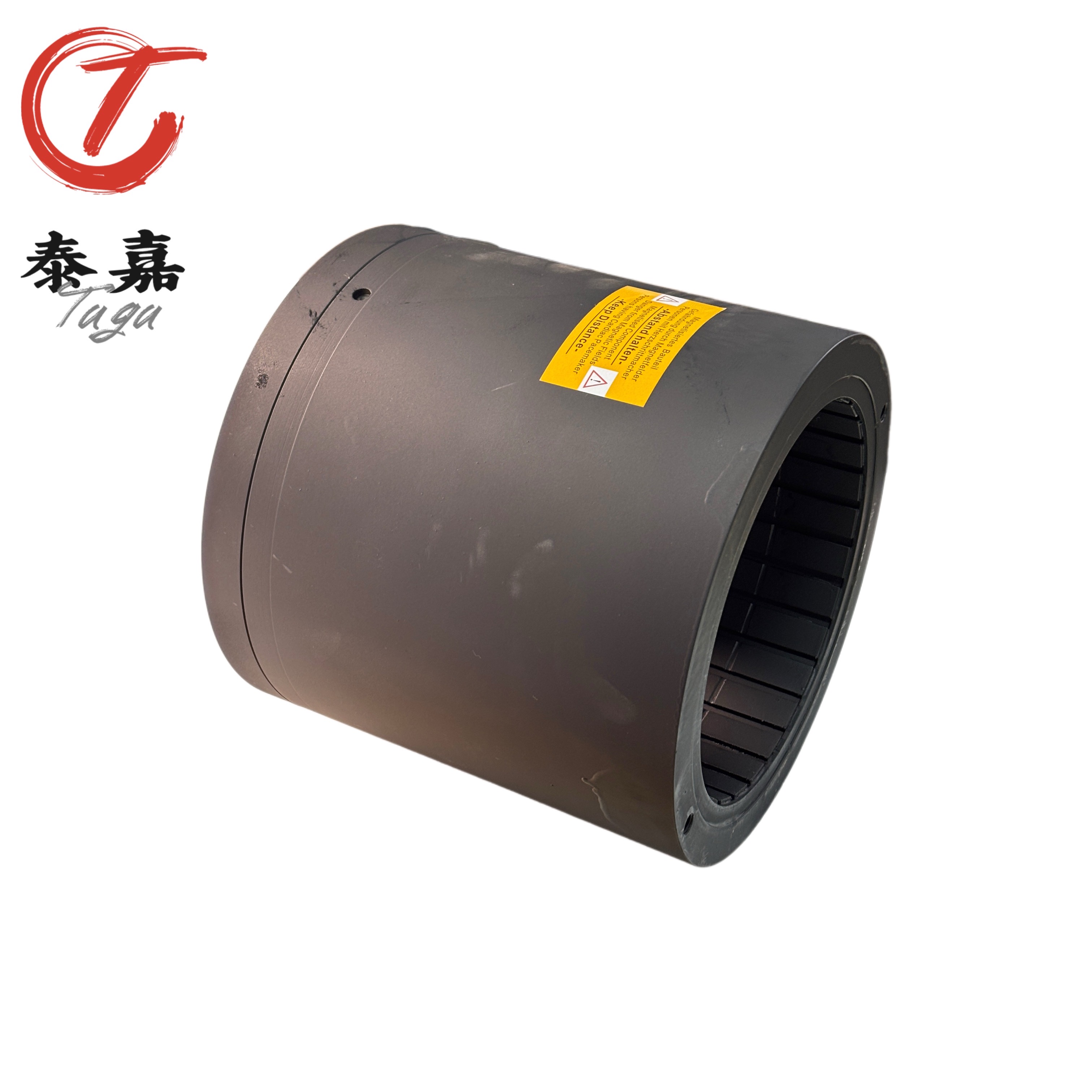

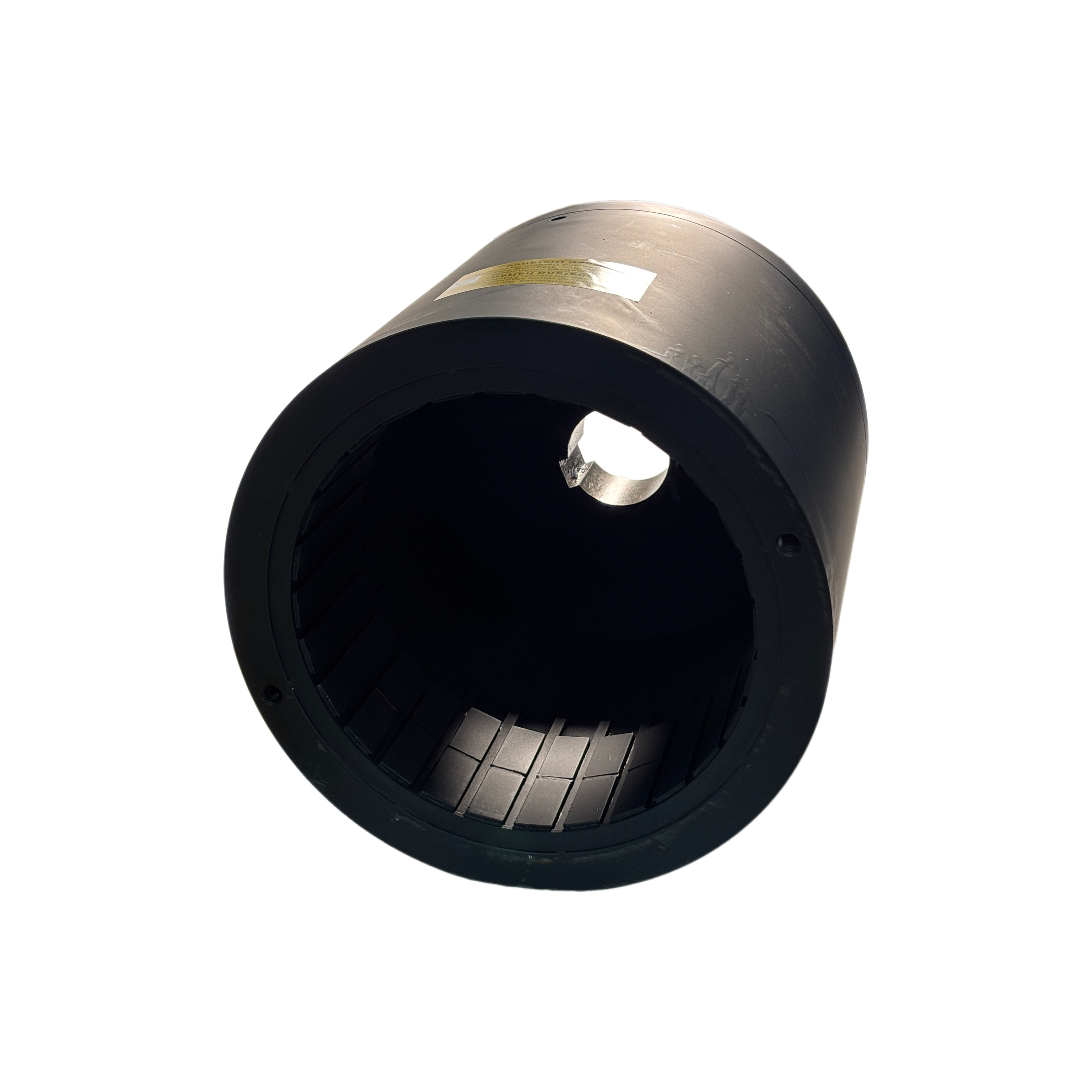

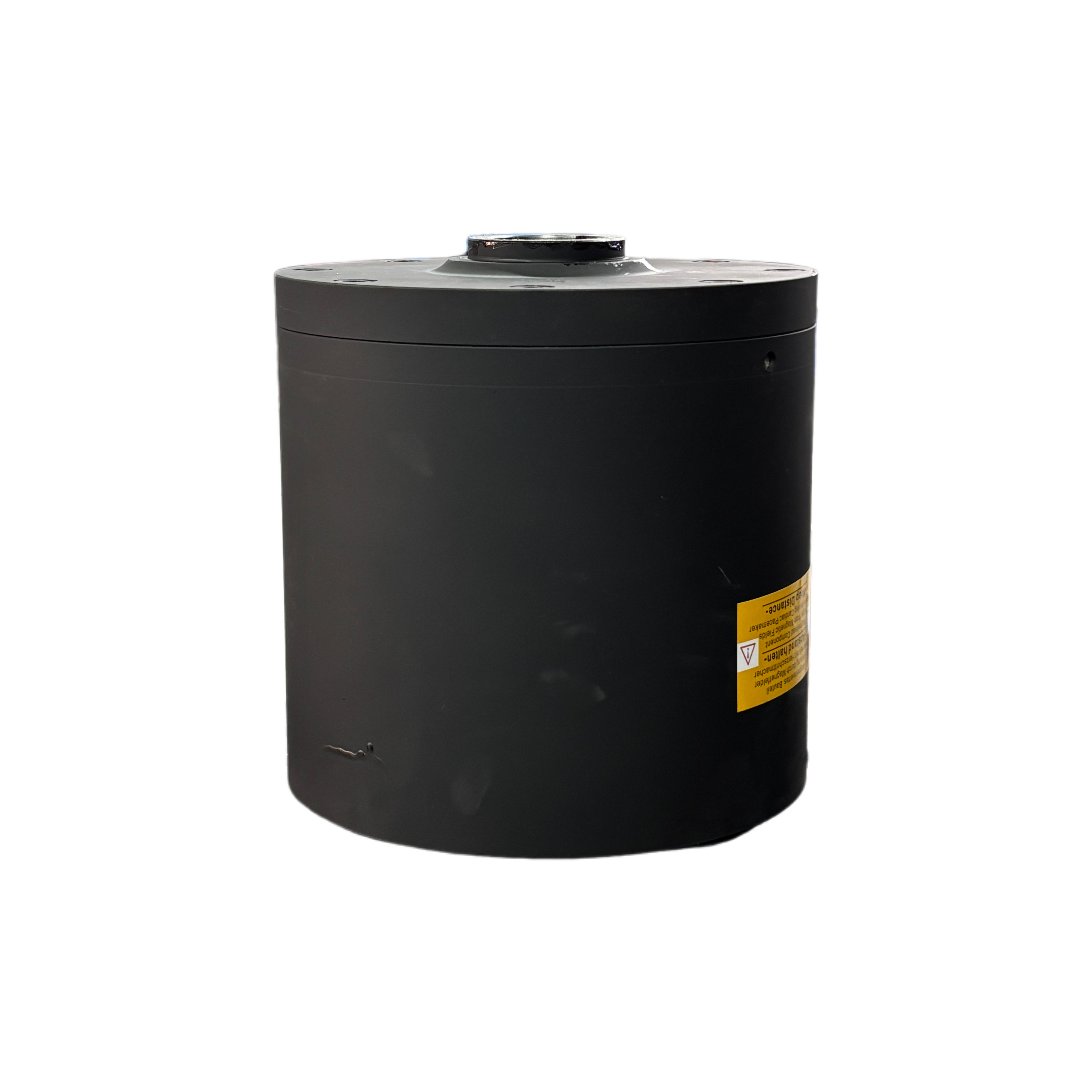

Outer Magnetic Ring for Klaus Union Nho Series Magnetic Pump (Replaceable with(P01144589)

Core Functions and Advantages:

Leak-free Transmission: As the core component enabling "zero leakage" in magnetic drive pumps, the outer magnetic rotor transmits torque contactlessly through the magnetic field penetrating the isolation sleeve. It completely eliminates mechanical shaft seals, fundamentally preventing medium leakage, making it suitable for conveying highly toxic, flammable, explosive, and highly corrosive media.

High Magnetic Performance: Manufactured with high-performance permanent magnetic materials (such as neodymium iron boron), it delivers high torque output, matches high-power magnetic drive pumps, and ensures efficient transmission.

Protective Design: The black coating provides anti-corrosion and anti-oxidation treatment, extending the service life of the magnetic rotor and adapting to harsh chemical working conditions.

Structural Design:

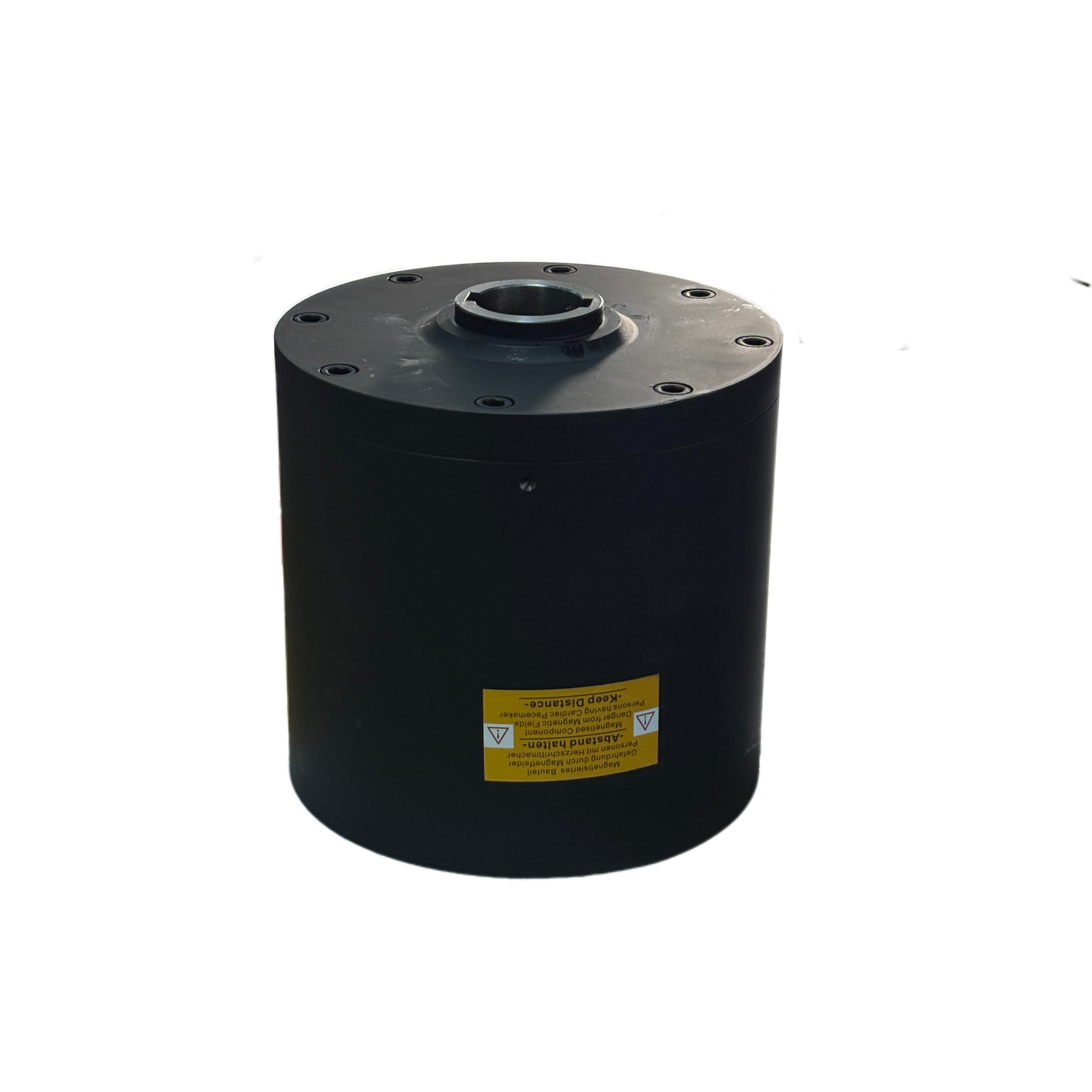

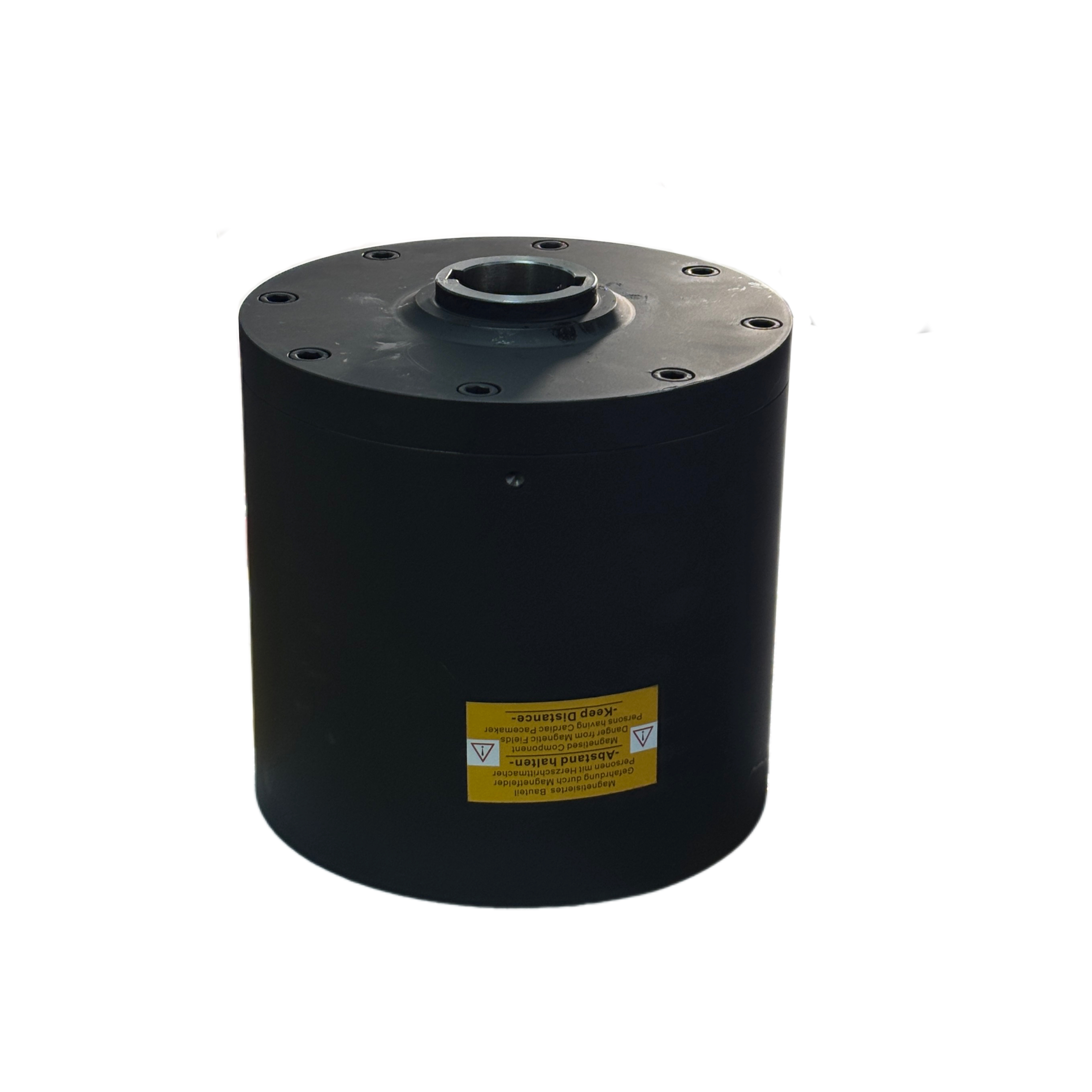

Cylindrical integrated structure with a keyway in the shaft hole and evenly distributed mounting screw holes on the end face, facilitating precise connection with the motor shaft, ensuring dynamic balance at high rotational speeds and avoiding vibration.

Application Scenarios:

Widely used in high-power magnetic drive pump units in industries such as petrochemicals, fine chemicals, pharmaceuticals, and environmental protection. It serves as a critical core spare part for conveying highly corrosive, toxic, and valuable media, ensuring safe and stable operation of the pump sets.
